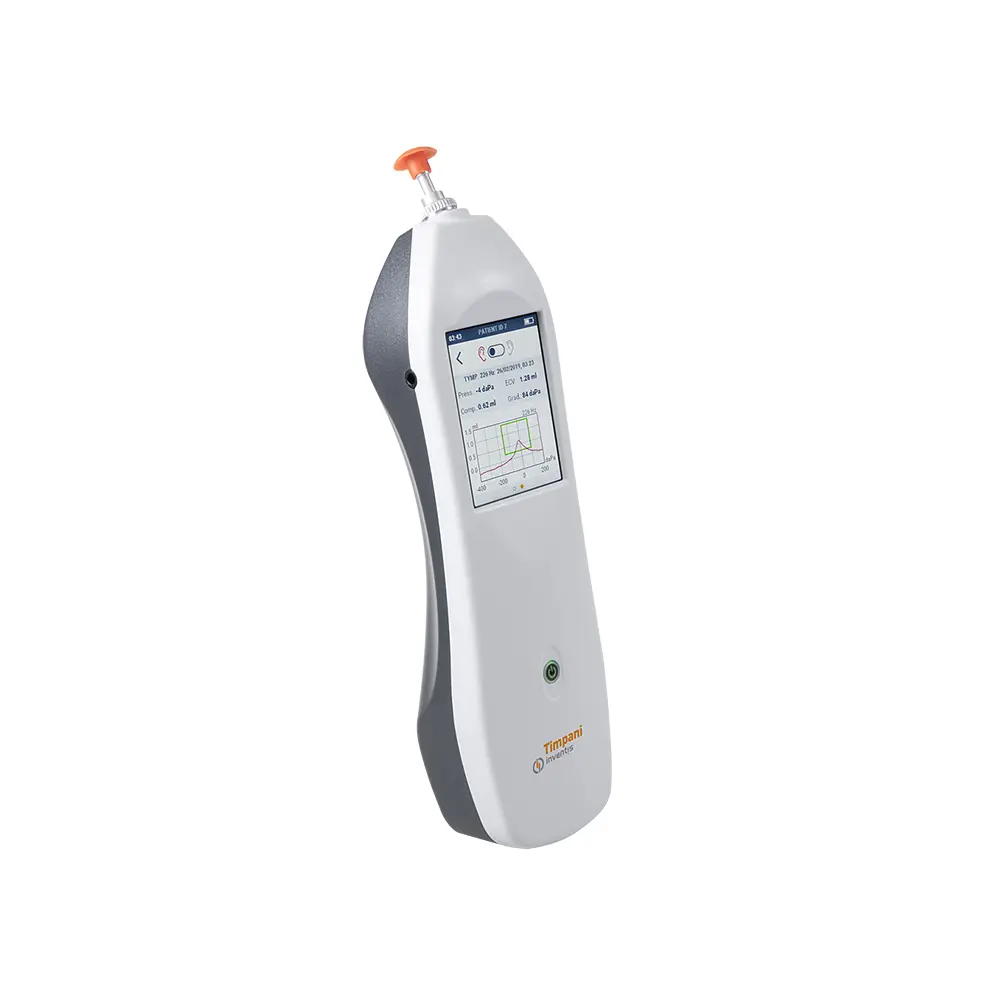

Inventis Timpani Handheld Tympanometer
| Equipments Brands |
Inventis |
|---|---|
| Equipments Categories |
Combined Audio – Tymp |
| Model |
Handheld |
| Origin |
Italy |
| Warranty |
2 Years |
Guaranteed Safe Checkout
Features & Compatibility
THE LICENSES
The basic version of Timpani allows performing the screening tympa-nometry using 226 Hz probe tone. The optional available licenses are:
- 1 kHz probe tone license
To conduct tympanometry also on children - Reflex license – Basic
To conduct ipsilateral acoustic reflex test at 1 kHz - Reflex license – Plus
To conduct ipsilateral acoustic reflex test at 0.5, 1, 2 and 4 kHz - Screening Pure Tone Audiometry
To conduct pure tone air conduction audiometry
THE OPTIONAL ACCESSORIES
Upon request, Timpani can be supplied with its docking station, ideal to house the device, to recharge the battery faster and to transfer data to the PC at the same time.
Moreover, it is possible to print your exam’s results directly from the device thanks to the thermal portable mini printer, available upon request: the communication with Timpani is wireless, via Bluetooth connection.
NOAH & MAESTRO INTEGRATION
Simply connect Timpani to a USB port on your computer, directly or putting it on the docking station and connecting the station to the PC, and you can transfer exam results into your Maestro or Noah database. Maestro software is included.
| AVAILABLE TESTS | Automatic Tympanometry @ 226 Hz (1000 Hz optional) Acoustic Ipsi-Reflex Test (optional) Automatic Test Sequence (tympanometry + reflex test, optional) Screening Pure Tone Audiometry (optional) |
|---|---|
| MIDDLE EAR ANALYZER SPECIFICATIONS | |
| PROBE TONE | Frequency: 226 Hz 1000 Hz (optional) Level: 85 dB SPL (@ 226 Hz) 75 dB SPL (@ 1000 Hz) |
| MEASUREMENT RANGE | 0.2 ÷ 8.0 ml (@ 226 Hz) 0.9 ÷ 16.0 mmho (@ 1000 Hz) |
| TYMPANOMETRY | Meatus compensated viewing mode Single scan Scan interval (choice): standard, from +200 to -400 a daPa reduced, from +100 to -300 daPa Safety limits: -750 daPa and +550 daPa Scan rate: 400 daPa/sec Auto start feature |
| ACOUSTIC REFLEX TEST | Ipsilateral stimulation, probe tone @ 226Hz Pulsed stimulus for reduced artifactsExam modes available:
Exam pressure:
|
| AVAILABLE STIMULI AND LEVELS | Pure tones: 500Hz, 1000Hz, 2000Hz, 4000Hz Attenuator step (selectable): 5 or 10 dB (automatic threshold); 5 dB (fixed intensity) Minimum Intensity: 70 dB HL Maximum intensity: 100 dB HL |
| AUDIOMETER SPECIFICATIONS | |
| AVAILABLE OUTPUTS AND TRANSDUCERS | AC: supra-aural DD45, insert earphones ER-3C |
| AVAILABLE STIMULI AND LEVELS | Stimulus: pure tone (see table) Attenuator step: 5 dB Intensity: -10 to 100 dB HL Frequency range: 125-8000 Hz |
| DEVICE SPECIFICATIONS | |
| PRINTER | Optional integrated Bluetooth thermal printer Paper dimensions: 58mm |
| CALIBRATION | Validity: 12 months All the parameters set through a dedicated software. |
| COMPUTER INTERFACE | Connection: USB (driverless) Compatible software: Inventis Maestro |
| DISPLAY | Type: Graphical color TFT LCD, capacitive touchscreen Size: diagonal 2.8”, 43.2 x 57.6 mm Resolution: 240 x 320 x RGB |
| POWER SUPPLY | Internal battery: Lithium-Ion rechargeable battery Battery life: more than 4 hours of continuous use Main Unit: 5Vdc, 1.4A External adapter USB dedicated: 100-240 Vac, 50/60 Hz, 0.3-0.15A, responding to IEC 60601-1 standard |
| MECHANICS | Size (WxDxH): 65 x 44 x 240 mm / 2.6 x 1.8 x 9.5 in Weight: 340 g / 12 oz |
