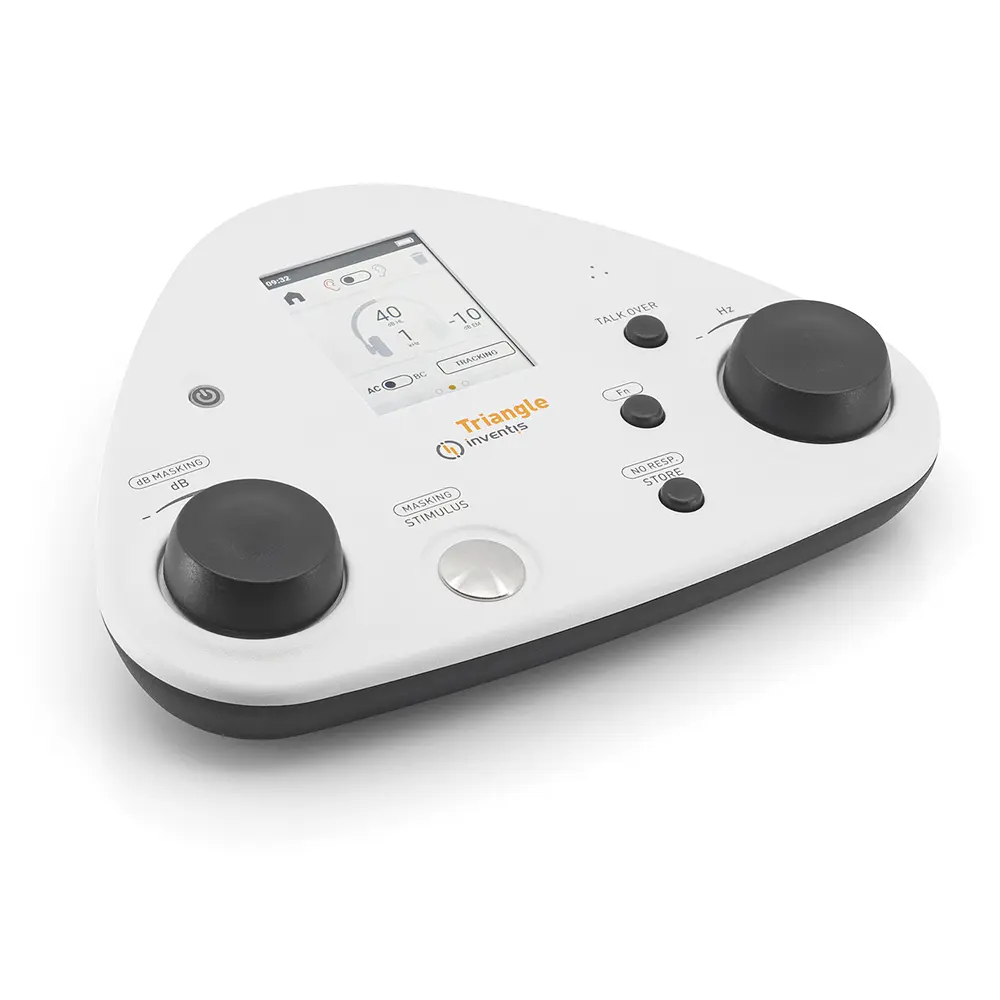

Inventis Triangle Screening Audiometer
| Equipments Brands |
Inventis |
|---|---|
| Equipments Categories |
Audiometers |
| Model |
Screening |
| Origin |
Italy |
| Warranty |
2 Years |
Guaranteed Safe Checkout
Features & Compatibility
| AVAILABLE SIGNALS | Stimulus: pure tone, warble tone Masking (optional, with “Bone Connectivity” license): NBN, WN |
|---|---|
| SIGNALS SPECIFICATION | Attenuator step: 5 dB Presentation: Continuous, Pulsed (1 and 2 Hz) Warble: 5 Hz sine wave modulating signal |
| AVAILABLE OUTPUTS AND TRANSDUCERS | AC: DD45 or DD65 headphones, ER-3C insert earphones BC: B71 bone vibrator |
| AVAILABLE TESTS |
|
| INTENSITY | AC: -10 to 100 dB HL BC: -10 to 60 dB HL |
| FREQUENCY RANGE | 125-8000 Hz |
| PATIENT-OPERATOR COMMUNICATION | Talk over: built-in microphone Patient response trigger |
| INTERNA DATABASE | Up to 100 patients |
| CALIBRATION | Validity: 12 months |
| CONNECTIVITY | USB driverless connection (opt.) Compatible software: Inventis Maestro |
| DISPLAY | Type: Graphical color TFT LCD, capacitive touchscreen Size: diagonal 2.8”, 43.2 mm x 57.6 mm Resolution: 240 x 320 x RGB |
| POWER SUPPLY | Internal battery: Lithium-Ion rechargeable battery Battery life: more than 12 hours of continuous use Main Unit: 5 Vdc, 1.4 A External dedicated USB adapter: 100-240 Vac, 50/60 Hz, 0.3-0.15 A, IEC 60601-1 compliant |
| MECHANICS | Size (WxDxH): 21 x 16 x 4 cm / 8.3 x 6.3 x 1.6 in Gross weight: 425 g / 0.94 lbs |
| FREIGHT PACKING | Size (WxDxH): 40 x 30 x 18 cm / 15.8 x 11.8 x 7.1 in Gross weight: 2500 g / 5.51 lbs |
THE STATE-OF-THE-ART
Triangle represents the state-of-the-art among the screeners:
- The only one with a graphical display with capacitive touchscreen
- The only one with a rechargeable lithium battery
- The only one featuring bone conduction with masking
- …and the only one with an astonishing Italian design!
AN UPGRADABLE DEVICE
The basic version of Triangle offers manual and automatic pure tone audiometry in air conduction, with a testing range from 125Hz to 8kHz.
You can upgrade at any time your Triangle with the following optional licenses:
Bone Conduction license
To conduct pure tone audiometry in bone conduction and to enable masking signals.
Computer-connectivity license
To transfer exam results to your Maestro or Noah database.
AUTOMATIC TESTING
The Automatic Pure Tone audiometry can be performed choosing among three different protocols:
- Hughson- Westlake
- Quick Search
- Fixed Intensity
In addition to the Hughson-Westlake technique for determining the AC threshold, the user can select the Quick Search for threshold identification, which is based on the first response starting from the minimum selected level, or opt for the Fixed intensity method, a basic screening test conducted at a fixed intensity level.
PORTABLE SYSTEM
Lightweight and compact, Triangle is extremely handy and easily transportable even thanks to the dedicated soft carrying case included with the device. The presence of a rechargeable Li-Ion battery makes Triangle the perfect choice for professionals on the move. Triangle is also provided with internal memory to store the exams of up to 100 patients.
