DIMENSIONS AND WEIGHT

• L x W x H: 370 x 290 x180 mm
• Net weight: 3.5 kg

TEST TYPES

• Tympanometry, Acoustic Reflex, Reflex Decay,
Quick test: check and screening, Multifrequency
Timpanometry*

USER INTERFACE

• Multilingual

PRINTER

• Built-in fast thermal printer with paper width: 112 mm
supplied as standard part

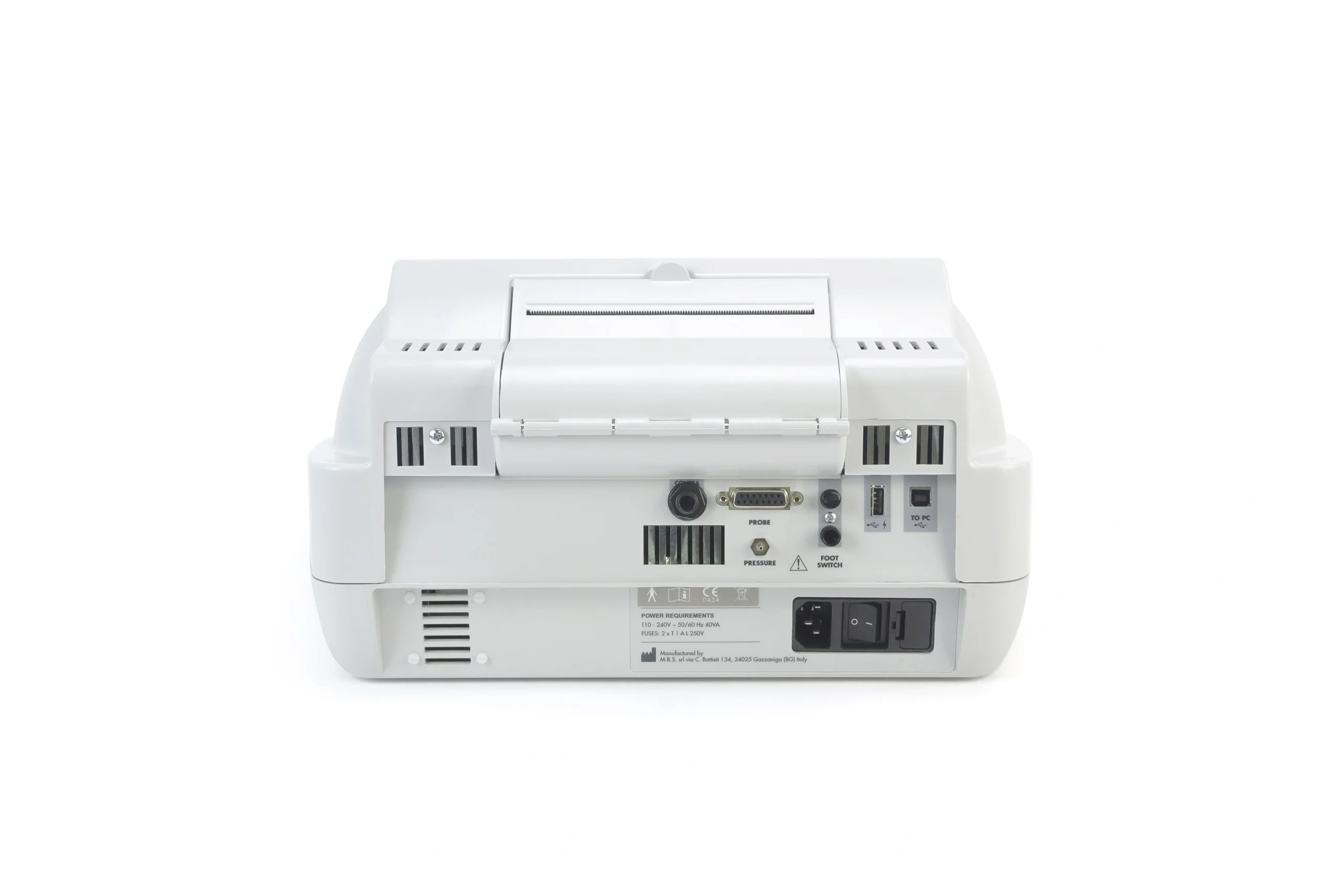

COMMUNICATION PORT

• Nr.1 USB host type A • Nr.1 USB slave type B

REPORTS

• Printed on thermal printer
•.pdf report created directly from the device and stored
on USB Pen drive with possibility to add patient data
and tests comments via the USB Keyboard (optional)
• Data transfer to PC using Resonance Management Data
Suite

“CHILDREN” FEATURE

• To help keep the child distracted while running screening
“Quick Check” a series of animated images appears on the
color display

WINDOWS® COMPATIBLE SOFTWARE

• Resonance MDS Management Data Suite

ACOUSTIC REFLEX TESTS

• Reflex test method: Threshold , Automatic, Manual
• Stimulus duration: 0.5, 1 or 2 sec.
• User selectable protocols for all test methods
• Ipsi or Contralateral stimulation for all reflex test
• Automated peak search functions available for all
test methods
• Manual Reflex: Pump manual control of all stimuli
• Reflex Decay: Threshold , Automatic, Manual
• Stimulus duration: 10 or 20 sec.

FREQUENCIES AND INTENSITY RANGES

Ipsilateral:
• Pure tone level range (dB HL) from 50 to 110
• Noise level range (dB SPL) from 50 to 100
• Frequency: 500, 1000, 2000, 3000, 4000 Hz
• Noise: BBN, HP or LP
• Frequency accuracy: ±1%
• Harmonic distortion (THD): less than 3%

Contralateral (not available for R26M-ME):
• Pure tone level range (dB HL) from 50 to 120
• Noise level range (dB SPL) from 50 to 115
• Frequency: 250, 500, 1000, 2000, 3000, 4000, 6000, 8000 Hz
• Noise: BBN, HP or LP
• Frequency accuracy: ±1%
• Calibration accuracy ±3 dB
• Level steps: 1, 2, 5 or 10 dB
• On/Off ratio: 70 dB minimum

* R26M-PT only
